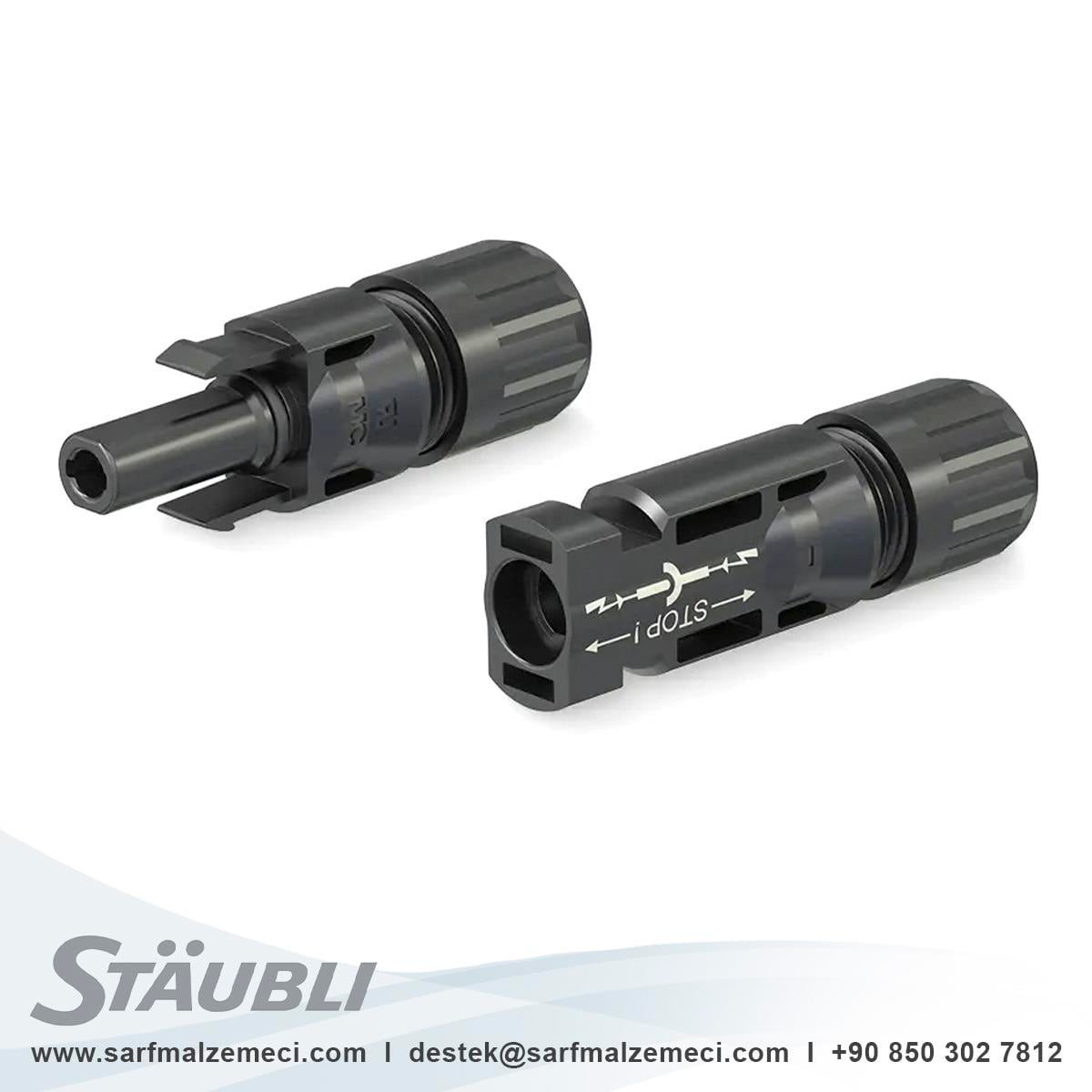

• Kanıtlanmış MULTILAM teknolojisi ile yüksek uzun vadeli stabilite, fiş konektörünün tüm
kullanım ömrü boyunca tutarlı bir şekilde düşük performans kaybı sağlar.
• DC 1100 V (IEC)1) ve DC 1500 V (UL) için onaylanmıştır.
• 25 yılı aşkın deneyime sahip, denenmiş ve test edilmiş fiş konektörleri.
• 10 mm²'ye kadar kesitlerle montaj için uygundur.
• Müşterinin spesifikasyonlarına göre hazır kablolar olarak da mevcuttur.
• MC4 ve MC4-Evo ürün ailesinden uygun bağlantı elemanları ve uygun kablolarla kullanılmalıdır.
• MC4 ve MC4-Evo, Stäubli'nin tescilli ticari markalarıdır.
Technical data
Ambient temperature range -40 °C...+85 °C (TÜV/UL)
Upper limiting temperature 105 °C
Degree of protection, mated IP65/IP68 (1 m, 1 h)
Degree of protection, unmated IP2X
Degree of pollution 3
Max. contact resistance of the connector 0.25 mΩ
Rated Impulse Voltage 16 kV
Contact system MULTILAM
Type of connection Crimping
Contact material Copper, tin plated
Insulation material PC/PA
Locking system Locking Type
Fire protection class UL94:V-0
Ammonia resistance (acc. to DLG) yes
Salt mist spray test, degree of severity 6 yes
TÜV Rheinland certifications number R 60127190
TÜV Rheinland 2 PfG 2330 R 60087448
UL-File number
(UL6703 and CSA C22.2 No. 182.5)
(cULus Listed and UL Recognized)
E343181
CQC number of certificate CQC20024256431
JET number of certificate 1) The IEC voltage expansion for MC4 cable couplers up
to DC 1100 V applies to 2.5 mm², 4.0 mm² and 6.0 mm²
B19T0013
cable cross sections used in the end application. However,
the 10 mm² cross-section remains at DC 1000 V.
